THE TASK
To make the 2K-dispenser even easier to operate, it needed to be equipped with a graphical touch display. However, the existing technical components were to remain unchanged and the solution had to be as flexible as possible in terms of assembly and also cost-effective.
The Solution

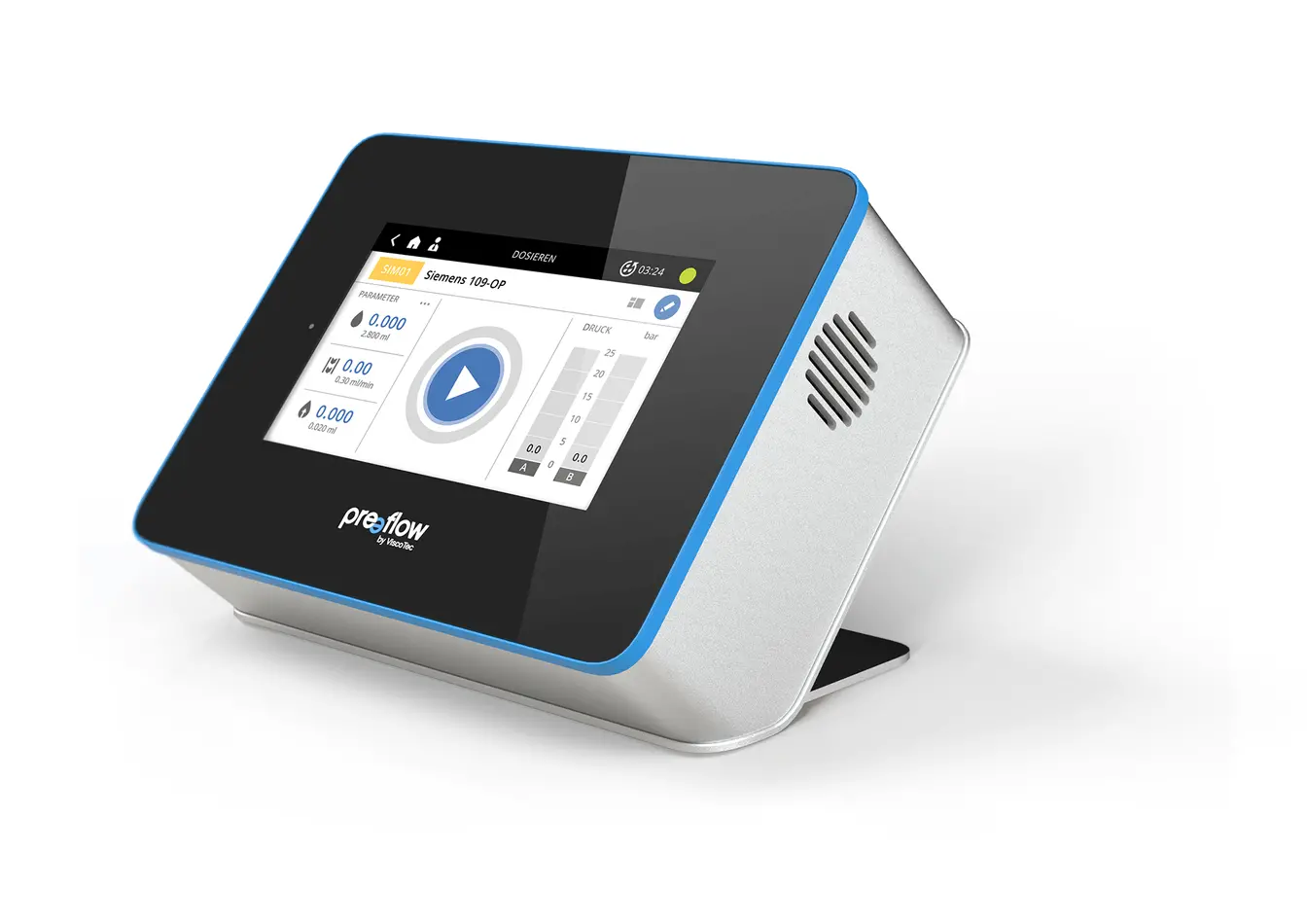

It occurred to us very early on, that if we placed the control technology for the dispensing system in a separate housing, this would facilitate maximum flexibility. The robust and inexpensive extruded aluminium profile offers sufficient protection for the integrated display. Thanks to its modular mounting system, the control unit can be mounted directly on the wall or on a wall bracket whilst leaving table installation also still possible.

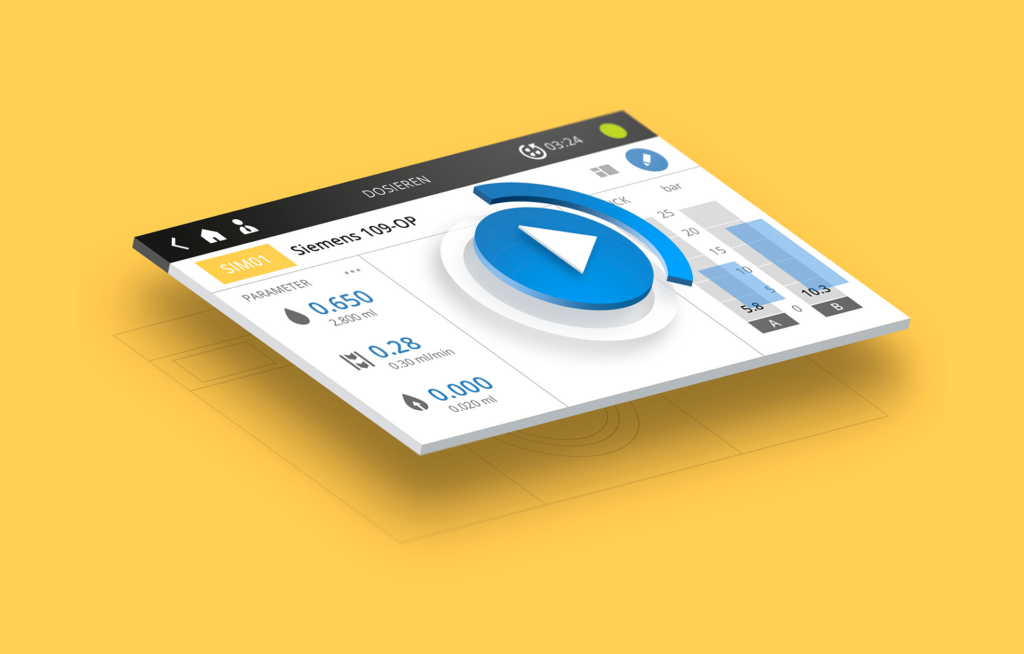

ICON-BASED USER GUIDANCE
In order to drastically reduce the possibility of operating errors, we developed an intuitive control concept based on icons. The easily understandable iconography allows training phases to be reduced to a minimum. Additionally, the high-contrast display is designed to be environmentally sensitive and offers optimum legibility in a wide range of set-up and lighting situations.
A mounting System that Provides Maximum Flexibility.
